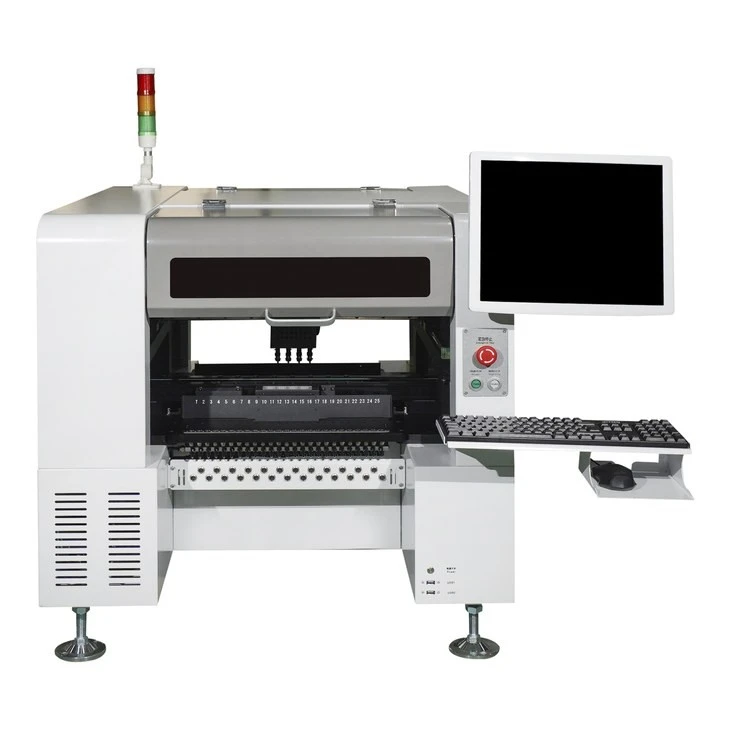

HW-T4-44/50F Benchtop Pick And Place Machine For SMT PCB Assembly - Compact Automatic Mounting Equipment
HW-T4-44/50F four-head benchtop/vertical pick and place machine with 5,000-8,000 pcs/h speed, 0.05 mm accuracy, 44/50 feeder stations and one-click programming. A compact SMT mounting solution for workshops and small factories.
Product Introduction
The HWGC HW-T4-44/50F is a compact four-head intelligent high-speed pick and place machine, available in benchtop and vertical configurations. It places SMD components onto PCB pads by machine vision, running at 5,000-8,000 pcs/h with 0.05 mm accuracy - an ideal entry-level automatic mounting equipment for electronics workshops, laboratories and small-batch SMT production.
Key Features
- 4 placement heads with JUKI-compatible nozzles, dual-head simultaneous pickup
- 50/44 feeder stations (8 mm basis); electric, pneumatic and vibration feeders plus 1 IC tray (48 positions)
- Handles 0201-1206, LED beads, diodes, transistors, SOT up to 30x30 mm
- Placement area 320x200 mm (44F) / 320x130 mm (50F) with tray, up to 360x260 mm without tray
- Components up to 7 mm height, Z-axis travel 20 mm
- XY travel 440x570 mm, linear guides + rolled/ground ball screw (optional)
- Windows-based HWGC intelligent operating system with one-click programming
Specifications
| Placement Accuracy | 0.05 mm (repeatability 0.05 mm, positioning 0.01 mm) |
| Continuous Operation | more than 24 hours non-stop |
| Component Range | 0201-1206, LED beads, diodes, transistors, SOT, up to 30x30 mm; QFP/BGA (>0.3 mm pin pitch) within 50x50 mm; custom vision for irregular components |
| Nozzle Buffer | 4.5 mm, JUKI-compatible nozzles |
| Component Angle | +/-180 deg |
| PCB Thickness | 3 mm max (3-5 mm process edge required in auto mode) |
| Conveyor | default left-to-right, ESD belt, board sensor |
| Programming | import coordinate files, one-click auto programming, optimal path planning; CSV/TXT import |
| Control Host | Intel high-performance industrial PC, 17-inch industrial display |
| Drive System | high-speed DSP drive, AC servo motors |
| Vision | fixed-shot flying alignment; auto recovery of missed pickups, angle correction and reject |
| Model | HW-T4-44/50F |
| Placement Speed | 5,000-8,000 pcs/h |
| Feeder Stations | 50 / 44 (8 mm basis), YAMAHA CL compatible |
| IC Tray | 1 tray, 48 positions, 320x150 mm |
| Max Component Height | 7 mm (Z-axis travel 20 mm) |
| XY Travel | 440x570 mm |
| Air Supply | 0.5-0.6 MPa, external tank no less than 50 L with oil-water separation |
| Power | AC220V 50/60 Hz, 600 W |
| Dimensions (benchtop) | L900 x W1140 x H875 mm (packed: L1000 x W1240 x H1000 mm) |
| Dimensions (vertical) | L900 x W1145 x H1280 mm (packed: L1000 x W1245 x H1450 mm) |
| Weight | 210 kg benchtop / 280 kg vertical (before packing) |
About HWGC
HWGC (Beijing Huawei Guochuang Electronic Technology Co., Ltd.) is a national high-tech enterprise integrating R&D, manufacturing and sales of SMT equipment. Founded in 2004 and pioneering domestic vision pick and place machines since 2010, HWGC offers four-head, six-head, eight-head and modular high-speed pick and place machines, together with reflow ovens (3/6/8 zones), screen printers, PCB separators and AOI, providing one-stop SMT production line customization for mass production, engineering samples and small-batch runs. With an R&D center in Beijing and a production base in Shijiazhuang, HWGC equipment is sold across China and exported to more than 60 countries, backed by ISO9001, CE and SGS certifications and multiple invention and utility model patents.
Key Advantages
- One-click intelligent programming: programming finished in about 5 minutes, saving up to 90% of programming time compared with traditional methods, supporting 24-hour non-stop production
- Automatic optimization of feeder station setup and nozzle assignment according to the BOM
- Multi-head simultaneous pickup and shortest-path automatic placement layout
- Automatic calibration of feeder pickup coordinates, saving about 30% of programming time
- Four-mark-point positioning and panel/combined-board function for higher efficiency
- Feeder anti-collision self-sensing system and three-stage scientific board conveying
- Custom vision solutions for irregular components
- Ceramic JUKI-compatible nozzles with 99.99% pick-up rate, wear-resistant and anti-static
- Gantry structure with XY linear guides, ball screws and AC servo drive for smooth, low-vibration motion
Warranty and After-Sales Service
- 1-year free warranty from the date of equipment training (excluding consumables and man-made damage)
- 2-hour response guarantee with phone or remote video support; on-site engineer dispatched within 48-72 hours when required
- Free on-site installation, commissioning and operator training
- Lifetime free software updates and upgrades
- Long-term supply of quality spare parts at favorable prices
