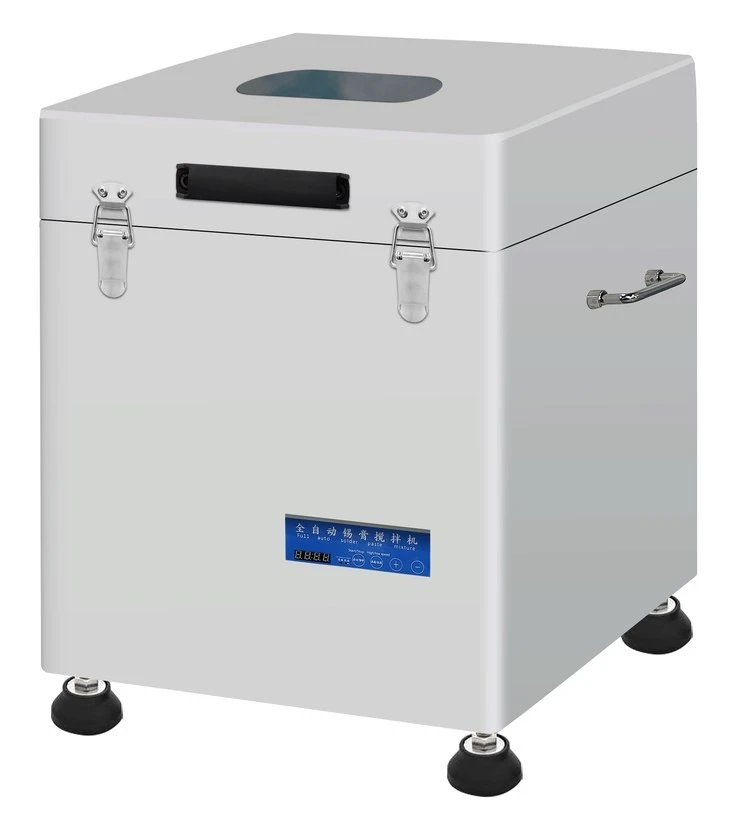

HW-J500 Automatic Solder Paste Mixer For SMT Production
The HW-J500 fully automatic solder paste mixer rewarms, de-foams and evenly mixes refrigerated solder paste in about 2 minutes with sealed, oxidation-free operation - two 500g jars per cycle.
Product Introduction
HW-J500 Fully Automatic Solder Paste Mixer
The HW-J500 is a fully automatic solder paste mixer designed to bring refrigerated solder paste back to working condition in minutes. It combines rapid rewarming, bubble removal and thorough mixing in one sealed cycle - the paste jar never needs to be opened, so the paste is protected from oxidation and moisture throughout the process. Paste comes out soft, uniform and immediately printable, making SMT stencil printing simpler and more consistent.
Driven by a planetary mixing principle that combines motor revolution with rotation, the HW-J500 handles two jars per cycle (a 500g counterweight jar is included for single-jar operation). Microcomputer control with an Omron time relay delivers precise, repeatable timing with automatic stop, while the balanced jig design keeps vibration low and operation quiet. Old and new solder paste can even be mixed together, helping factories cut material waste and speed up line preparation.
Key Features
- Ready in about 2 minutes: refrigerated solder paste is rewarmed, de-foamed and evenly mixed in one short cycle; silver paste and chemical inks are also supported with adjustable timing.
- Sealed mixing process: the jar stays closed during mixing - no oxidation, no moisture absorption, and a built-in de-bubbling action keeps paste quality stable.
- Planetary mixing motion: motor revolution (400 RPM) combined with secondary rotation (300 RPM), driven by a 1350 RPM motor, produces soft, highly active paste with stable viscosity.
- Precise digital control: FY-series microcomputer with Omron time relay, LED digital display and a wide timing range from 0.01s to 99H99s; the machine stops automatically when the set time is reached.
- Two-jar capacity with custom jigs: mixes two jars at once (0-500g each), fits standard Φ60-67mm jars (common 500g paste bottles), with custom fixtures available for other sizes; a 500g counterweight jar keeps single-jar runs balanced.
- Safe and compact: a micro switch stops the machine instantly when the cover is opened; the 400×400×500mm, 45kg body fits easily beside any printer.
Specifications
| Model | HW-J500 (fully automatic solder paste mixer) |
| Main function | Fast rewarming, de-foaming and uniform mixing of refrigerated solder paste |
| Control system | FY-series microcomputer control with Omron time relay, automatic stop at set time |
| Mixing principle | Planetary mixing: motor revolution + secondary rotation |
| Motor speed | 1350 RPM |
| Primary revolution speed | 400 RPM |
| Secondary rotation speed | 300 RPM |
| Working capacity | 0-500g × 2 jars per cycle (single-jar use with supplied 500g counterweight jar) |
| Applicable jar size | Jar diameter Φ60-Φ67mm standard (fits common 500g solder paste bottles); other sizes by custom fixture |
| Mixing time | Solder paste approx. 1.5-2 minutes; silver paste approx. 5 minutes; chemical inks adjustable by material |
| Timer setting | 0.01s - 99H99s, selectable H / M / S units |
| Display | LED digital display |
| Safety function | Micro switch on cover - machine stops immediately when opened |
| Rated power | 60W (constant speed) |
| Power supply | AC 220V ±10%, 50Hz |
| Dimensions | 400 × 400 × 500mm (L×W×H) |
| Machine weight | 45kg |
| Standard accessories | Power cord ×1, round mixing belts ×2, 500g counterweight jar ×1 |
About HWGC
Based in Shijiazhuang, Hebei, China, HWGC (HuaWei GuoChuang) is a dedicated builder of SMT assembly equipment. Its product range covers pick and place machines, reflow ovens, solder paste printers and mixers, PCB handling equipment and optical inspection systems. What sets HWGC apart is vertical integration: hardware, motion control and vision software are all developed by its own engineering team, which keeps machines practical to operate and straightforward to service. From single benchtop units to complete turnkey SMT lines, HWGC equipment is chosen by electronics manufacturers, laboratories and EMS providers around the world.
Key Advantages
- Direct-from-manufacturer pricing - no trading companies in between, and customization requests go straight to the engineers.
- In-house control software and vision technology, with free upgrades and long-term version support.
- Industrial-grade components and full aging tests before shipment ensure stable round-the-clock running.
- Full SMT line portfolio from one source: printing, mounting, soldering, handling and inspection equipment.
- Dedicated export support team providing remote diagnosis, video assistance, online training and fast spare-parts delivery.
Warranty and After-Sales Service
HWGC provides a 12-month warranty on every machine, effective from the delivery date. Faults caused by non-human factors within the warranty period are covered by free repair or free replacement parts. Technical assistance is available for the entire service life of the equipment via phone, WhatsApp, email or remote connection, supported by installation videos, user manuals and online training sessions. Urgent cases are answered with remote diagnosis within 24 hours, and spare parts ship worldwide by international courier. For complete line projects, on-site installation and operator training services are available on request.
