HW-D4-42F Four-Head Pick And Place Machine For SMT Assembly
The HW-D4-42F is a compact four-head smart pick and place machine delivering 8,000-11,000 pcs/h with ±0.05mm placement accuracy, 42 feeder slots and 24-hour continuous operation for SMT PCB assembly.
Product Introduction

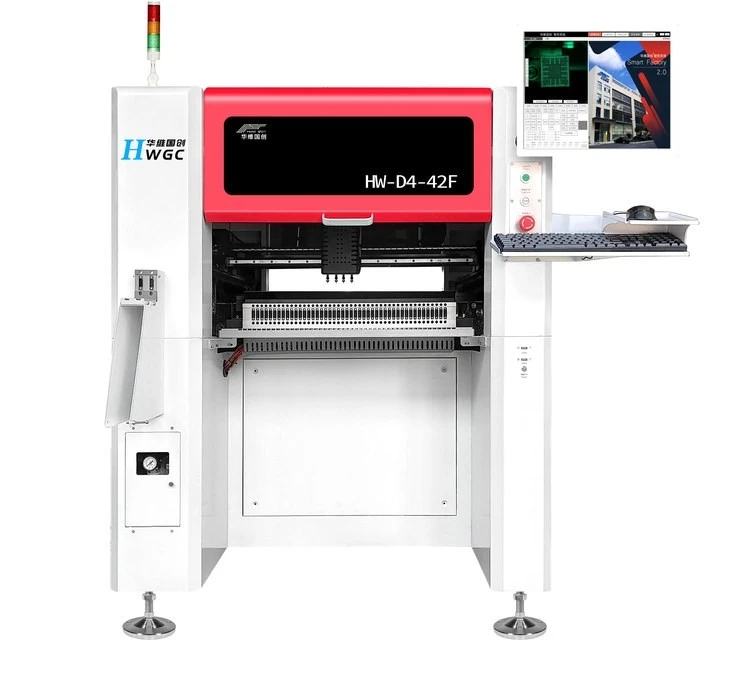

HW-D4-42F Four-Head Smart Pick and Place Machine
The HW-D4-42F is a new-generation compact four-head SMT mounter built for high-efficiency, high-precision electronic assembly. It mounts 8,000-11,000 components per hour with ±0.05mm placement accuracy and 0.01mm positioning accuracy, combining high-definition vision, AC servo drives and ground ball screws in a one-piece cast-iron frame that runs smoothly and quietly for more than 24 hours of non-stop production.
With 42 feeder slots (8mm basis), NXT electric feeder support, vibration feeder compatibility and two IC trays holding 96 positions, the HW-D4-42F covers components from 0201 chips up to 30×30mm QFP/BGA packages with 0.3mm pitch. Its self-developed intelligent software optimizes complex layouts with one click, so programming a new job takes as little as five minutes - an ideal fit for R&D labs, prototyping shops and small-to-medium batch SMT production.
Key Features
- High-speed mounting: 8,000-11,000 pcs/h with four-head simultaneous pickup and recognition, three-stage board feeding and centralized multi-priority pickup path optimization.
- Precision transmission: ±0.05mm placement accuracy from HD cameras, high-precision AC servo motors and ground ball screws with linear guides.
- 5-minute programming: intelligent one-key optimization algorithms, built-in component library and direct CSV/TXT coordinate import sharply reduce the learning curve for new operators.
- Wide component coverage: 0201, 0402, 0603, 0805, 1206, LEDs, diodes, transistors and SOT, plus QFP/BGA within 30×30mm with pitch above 0.3mm; vision customization for odd-form parts is available.
- Flexible feeding system: 42 feeder slots (8mm basis) compatible with NXT electric feeders, vibration feeders and 2 IC trays (96 positions, L650×W175mm).
- Non-stop reliability: one-piece cast-iron structure with low noise and stable accuracy, rated for >24h continuous running with placement yield up to 99.7%.
- Fast job changeover: automatic nozzle sequencing, automatic pickup-coordinate acquisition and automatic layout path optimization make engineering changes quick and convenient.
Specifications
| Basic Performance | |
| Model | HW-D4-42F |
| Placement speed | 8,000-11,000 pcs/h |
| Placement accuracy | ±0.05mm |
| Repeat placement accuracy | 0.05mm |
| Positioning accuracy | 0.01mm |
| Continuous operation | >24 hours non-stop |
| PCB area | 50×50mm - 550×360mm (without tray); 50×50mm - 550×220mm (with IC tray) |
| Component range | 0201, 0402, 0603, 0805, 1206, LED beads, diodes, transistors, SOT; QFP/BGA within 30×30mm with pitch >0.3mm; odd-form components by vision customization |
| Max component height | ≤20mm |
| Component angle support | ±180° |
| Mounting Head System | |
| Nozzle quantity | 4 (JUKI type nozzles) |
| Pickup method | Multi-head simultaneous pickup |
| Nozzle buffer range | 4.5mm |
| Z-axis max stroke | 50mm |
| Feeding System | |
| Feeder slots | 42 positions (8mm feeder basis) |
| Feeder types | NXT electric feeders, vibration feeders, IC trays |
| IC tray capacity | 2 trays (96 positions), tray size L650×W175mm |
| Loading method | Automatic layout material distribution, automatic pickup-coordinate positioning |
| Safety system | Feeder float (tilt) alarm |
| PCB Transport System | |
| Board thickness | ≤3mm (3-5mm process edge required in auto mode) |
| Rail adjustment | Manual / electric automatic adjustment |
| Conveyor mode | Left-to-right board flow by default, dual-side docking support, three-stage board entry |
| Safety features | Anti-static conveyor belt, board presence sensors |
| Vision & Control System | |
| Operating system | Windows-based HWGC intelligent operating system (self-developed) |
| Recognition devices | 1 Mark camera, 4 high-speed recognition cameras, 1 high-precision camera |
| Recognition method | Four heads recognize and pick simultaneously; fixed-camera flying centering |
| Mark point positioning | Manual / fully automatic |
| Controller | Intel high-performance industrial PC |
| Display | 17-inch industrial control monitor |
| Drive system | High-speed DSP drive, AC servo motors |
| Safety devices | Emergency stop button, three-color alarm lamp, cover-open slow-down/stop |
| Motion Control System | |
| XY max travel | 640×680mm (single side) |
| XY drive | Linear guide rail + ground ball screw |
| Motion mode | Intelligent curve acceleration/deceleration with linear interpolation algorithm |
| Motion protection | High-wear-resistant cable chain and flexible cables |
| Safety detection | Missing-material auto compensation, component angle auto correction, invalid material auto rejection |
| Programming | |
| Programming method | Coordinate file import, one-key automatic programming, optimal path planning |
| Compatible formats | CSV / TXT files directly importable |
| Pneumatic & Electrical | |
| Air pressure | 0.4-0.5 MPa |
| Air supply requirement | Oil-water separator included; external air tank ≥60L with dust filter and pressure stabilizer required |
| Vacuum source | Vacuum pump with high-speed vacuum break valve |
| Power supply | AC 220V, 50/60Hz, 600W |
| Circuit protection | Leakage protector, thermoset housing - crack-resistant and leak-proof |
| Dimensions & Weight | |
| Machine dimensions | L1160×W1340×H1450mm (before packing); L1260×W1450×H1640mm (packed) |
| Machine weight | 690kg (before packing); 780kg (packed) |
About HWGC
HWGC (HuaWei GuoChuang) is an SMT equipment manufacturer headquartered in Shijiazhuang, Hebei, China, developing and producing pick and place machines, reflow soldering ovens, stencil printers, PCB loaders and unloaders, conveyors and inspection systems. From benchtop mounters for laboratories to fully automatic high-speed production lines, every machine is engineered in-house - from motion control to vision software - so that customers receive equipment that is quick to program, dependable in 24-hour operation and easy to maintain. Today HWGC machines serve electronics factories, research institutes and contract manufacturers across global markets, all backed by direct factory engineering support.
Key Advantages
- Factory-direct supply with complete in-house R&D - competitive pricing and fast response to customization requests.
- Proprietary control software and vision algorithms, continuously upgradable throughout the machine's service life.
- One-piece cast-iron frames, branded servo motors and pneumatic components, with aging tests before every delivery.
- One-stop SMT line coverage: printers, mounters, reflow ovens, handling equipment and AOI from a single supplier.
- English-speaking after-sales team offering remote diagnostics, video guidance, online training and express spare-parts service.
Warranty and After-Sales Service
Each HWGC machine carries a 12-month warranty starting from the delivery date. Within the warranty period, any part that fails under normal use is repaired or replaced free of charge. Lifetime technical support is provided by phone, WhatsApp, email and remote connection, together with installation videos, operation manuals and online training. Urgent problems receive remote diagnosis within 24 hours, and replacement parts are dispatched by international express. On-site installation and operator training can also be arranged for complete production line projects.
